Problem: Choosing the Wrong AI Architecture
You're building a conversational AI feature and you're stuck choosing between a rule-based chatbot and an autonomous LLM agent. Pick wrong and you'll either over-engineer a simple FAQ bot or under-power a complex workflow assistant.
You'll learn:
- How rule-based chatbots and LLM agents work under the hood
- The tradeoffs in cost, reliability, and flexibility
- A clear decision framework for picking the right approach
Time: 12 min | Level: Intermediate
Why This Happens
These two terms get used interchangeably, but they describe fundamentally different systems. The confusion leads to costly rebuilds—teams that build a rules engine for a task requiring reasoning, or reach for a full LLM agent when a decision tree would do fine.
Common symptoms of picking wrong:
- Rule-based bot can't handle phrasing variations, frustrating users
- LLM agent hallucinates answers for structured data lookups
- Costs spiral because an LLM is doing work a lookup table could handle
How Rule-Based Chatbots Work
A rule-based chatbot operates on a deterministic decision tree. When a user sends a message, the system matches it against predefined patterns or intents—usually via keyword matching, regex, or a shallow intent classifier—and returns a scripted response.
# Simplified rule-based intent handler
def handle_message(message: str) -> str:
message = message.lower()
if "refund" in message or "return" in message:
return "To request a refund, visit /account/returns."
if "hours" in message or "open" in message:
return "We're open Mon–Fri, 9am–6pm EST."
# Fallback when no rule matches
return "I didn't understand that. Try asking about refunds or store hours."
What makes it reliable: Every response is deterministic. The same input always produces the same output. That predictability is its biggest strength—and its biggest limitation.

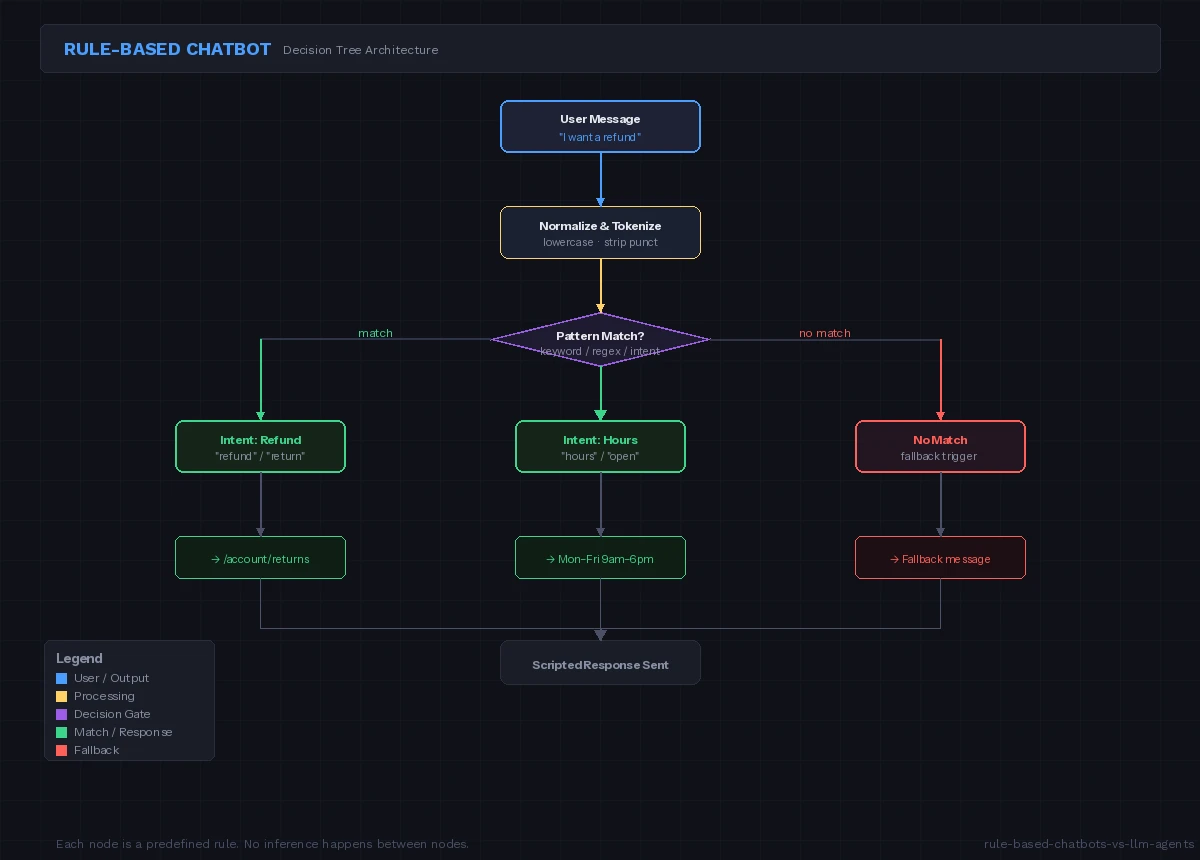

Each node is a predefined rule. No inference happens between nodes.
Strengths
Rule-based systems shine for narrow, well-defined domains: FAQ bots, order status lookups, appointment schedulers. They're fast to deploy, cheap to run, and easy to audit. When compliance or accuracy guarantees matter—finance, healthcare, legal—rules give you a paper trail.
Limitations
These bots break on anything outside their defined paths. A user saying "I want my money back" instead of "refund" may get the fallback response. Maintaining rule sets becomes unwieldy past a few dozen intents, and adding new capabilities requires manual updates every time.
How Autonomous LLM Agents Work
An LLM agent replaces the rule set with a large language model capable of reasoning, planning, and deciding which actions to take. The model interprets the user's goal, selects from available tools, and iterates until it completes the task—without being explicitly programmed for each scenario.
# Simplified LLM agent loop (e.g., with LangChain or custom tool-calling)
from anthropic import Anthropic
client = Anthropic()
tools = [search_knowledge_base, create_ticket, lookup_order]
def run_agent(user_message: str):
messages = [{"role": "user", "content": user_message}]
while True:
response = client.messages.create(
model="claude-opus-4-6",
max_tokens=1024,
tools=tools,
messages=messages
)
if response.stop_reason == "end_turn":
# Model finished reasoning, return final text
return response.content[0].text
if response.stop_reason == "tool_use":
# Model wants to call a tool—execute it and loop
tool_result = execute_tool(response.content)
messages.append({"role": "assistant", "content": response.content})
messages.append({"role": "user", "content": tool_result})
The key difference is the loop. The agent reasons about what to do next, rather than matching against a lookup table. It can handle "I got charged twice last Tuesday and need this sorted before my trip Thursday" without explicit rules for date parsing or urgency detection.

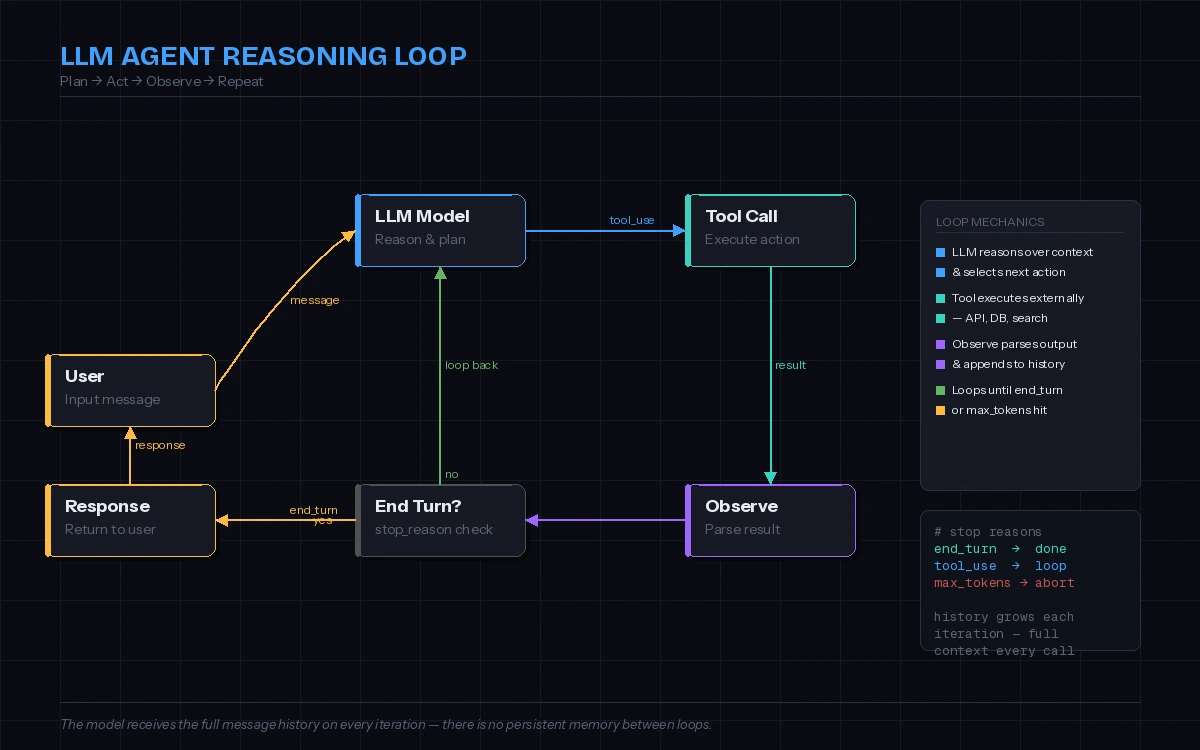

The model plans, acts, observes results, and plans again until the task is done.
Strengths
LLM agents handle ambiguous input, multi-step tasks, and novel situations gracefully. They adapt to phrasing variations automatically and can combine tools in sequences the developer never explicitly programmed. For complex workflows—research tasks, incident triage, personalized recommendations—agents dramatically reduce the code you need to write.
Limitations
Agents are non-deterministic. The same input can produce different outputs across runs. They're also expensive: each reasoning loop costs API tokens, and complex tasks may require several loops. Debugging is harder because there's no explicit code path to trace—you're reading model reasoning logs instead.
Decision Framework
The choice comes down to three questions.
1. Is the domain bounded?
If you can enumerate every intent your system needs to handle in an afternoon, a rule-based system is likely sufficient. If new edge cases show up every week, or users need to combine actions in unpredictable ways, reach for an agent.
2. Does correctness matter more than capability?
For any workflow where a wrong answer has real consequences—refund processing, medical advice, legal documents—rule-based systems give you auditability and guarantees that LLMs can't match today. Agents are better suited to tasks where a reasonable but imperfect answer has value (research summaries, draft generation, triage).
3. What's the cost tolerance?
A rule-based FAQ bot handling 10,000 messages/day costs nearly nothing to run. The same volume through an LLM agent can cost tens to hundreds of dollars daily, depending on model and task complexity. For high-volume, low-complexity tasks, the economics rarely favor agents.
Simple, bounded, high-stakes, high-volume → Rule-based
Complex, open-ended, tolerates imperfection → LLM Agent
Hybrid: structured intake + LLM fallback → Most production systems
Verification
The best way to test your choice: define 20 real user messages from your target domain and run them through both systems.
# For LLM agents, log reasoning traces to inspect decision quality
export ANTHROPIC_LOG=debug
python run_agent_eval.py --test-cases eval/messages.json
You should see: Rule-based systems failing gracefully on out-of-domain inputs; agents handling phrasing variation but occasionally over-reasoning on simple tasks.
What You Learned
- Rule-based chatbots are deterministic, cheap, and auditable—best for narrow, well-defined domains
- LLM agents reason over tools in loops—best for complex, multi-step, or ambiguous tasks
- Most production systems use a hybrid: rules handle the common path, the LLM handles edge cases
- Choosing wrong isn't fatal, but costs you a rebuild—use the three-question framework before you start
Limitation: Agentic frameworks are evolving fast. Reliability and cost characteristics of models like Claude 4.6 and GPT-4o will look different in 12 months.
Tested patterns apply to Anthropic Claude claude-opus-4-6, LangChain 0.3+, and Python 3.12. Rule-based examples are framework-agnostic.
