Problem: Multiple Cameras Killing Each Other's Throughput

You plug in a second (or third) USB camera and suddenly everything degrades — dropped frames, device disconnects, or one camera simply refuses to initialize. The hardware looks fine, the drivers are loaded, but something is silently failing.

You'll learn:

How USB controllers share bandwidth and why that's the root cause
How to identify which physical controller each device is on
How to redistribute cameras across controllers to eliminate contention

Time: 15 min | Level: Intermediate

Why This Happens

USB bandwidth isn't per-port — it's per host controller. A single USB 3.0 controller has ~5 Gbps total throughput shared across every device plugged into it, including internal hubs. Most motherboards and laptops expose multiple physical ports but route many of them through the same controller.

A single uncompressed 1080p30 webcam using MJPEG consumes roughly 100–250 Mbps. A raw (YUY2) stream can hit 1.5 Gbps on its own. Two or three cameras on one controller quickly saturate it.

Common symptoms:

One camera shows solid video while the other stutters or shows a black frame
dmesg (Linux) or Device Manager (Windows) shows xhci_hcd errors or "USB device not accepting address"
Frame rate caps at exactly half what you expect (controller throttling)
Devices work individually but fail when both are connected

dmesg showing USB bandwidth error Linux dmesg output showing xhci bandwidth allocation failure

Solution

Step 1: Map Your USB Controllers

Before moving anything, know your topology.

Linux:

# List all USB controllers and the devices attached to each
lsusb -t

The output shows a tree. Each /: Bus XX.Port 1 is a separate host controller. Devices nested beneath it share its bandwidth.

# More detail — shows device speed and power
lsusb -v 2>/dev/null | grep -E "Bus|idVendor|idProduct|bcdUSB|MaxPower"

Windows (PowerShell):

# List USB host controllers and connected devices
Get-PnpDevice -Class USB | Select-Object FriendlyName, InstanceId, Status | Sort-Object FriendlyName

Then open Device Manager → View → Devices by connection to see the physical tree visually.

Expected: You should see at least 2 separate USB host controllers listed. If all your ports trace back to one controller, the fix is hardware (a PCIe USB card — see Step 3).

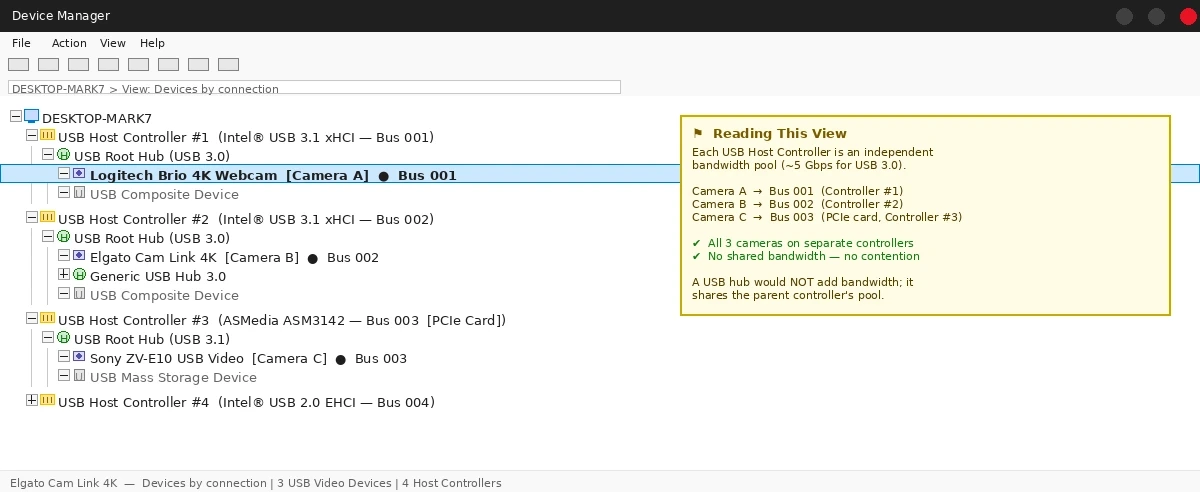

Windows Device Manager USB tree view Device Manager in "Devices by connection" mode — each USB Host Controller is a separate bandwidth pool

Step 2: Check Current Bandwidth Consumption

Linux:

# See allocated vs. available bandwidth per bus
cat /sys/kernel/debug/usb/devices | grep -E "^B:|^D:|^P:"

Look for Bandwidth=XX% — anything above 80% will cause instability under load.

# Real-time USB traffic (requires usbmon kernel module)
sudo modprobe usbmon
sudo cat /sys/kernel/debug/usb/usbmon/1u | head -50

Windows:

Download USBTreeView (free, no install required). It shows actual bandwidth allocation per controller in real time, including which devices are consuming what.

If it fails:

Linux — /sys/kernel/debug/usb/devices is empty: Mount debugfs first with sudo mount -t debugfs none /sys/kernel/debug
Windows — no USBTreeView access: Check Event Viewer → System for usbhub warnings as an alternative

Step 3: Redistribute Cameras Across Controllers

Now that you know the topology, physically move cameras to different controllers.

# After reconnecting, verify the camera moved to a new bus
lsusb -t

# Confirm bus assignment for a specific device (replace vid:pid)
lsusb | grep "046d:085e"  # Example: Logitech Brio
# Note the Bus number, then check lsusb -t to confirm it's on a different controller

If you only have one controller (common on laptops):

Add a PCIe USB card with its own dedicated controller chip (not a USB hub). Cards based on the Renesas µPD720201 or ASMedia ASM3142 are well-supported on Linux and Windows. A hub shares bandwidth — it does not add it.

# After adding a PCIe card, verify it appears as a new host controller
lsusb -t | grep "^/:"

Expected: Each camera should now appear under a different Bus entry.

Step 4: Reduce Per-Camera Bandwidth (If Hardware Changes Aren't Possible)

If redistribution isn't an option, compress at the source.

Force MJPEG instead of raw YUY2 in OBS or v4l2:

# Linux — list supported formats and their bandwidth
v4l2-ctl --device=/dev/video0 --list-formats-ext

# Force MJPEG capture (much lower bandwidth than YUY2)
v4l2-ctl --device=/dev/video0 --set-fmt-video=width=1920,height=1080,pixelformat=MJPG

In OBS Studio: Under each video capture source → Properties → Video Format → select MJPEG instead of YUY2. MJPEG at 1080p30 uses ~150 Mbps vs. ~1.5 Gbps for raw YUY2 — a 10x reduction.

If it fails:

Camera doesn't offer MJPEG: Check v4l2-ctl --list-formats-ext — some budget cameras only expose YUY2
MJPEG looks blocky: Increase bitrate in camera settings if exposed, or accept the tradeoff

Verification

# Linux: confirm each camera is on a different bus
lsusb -t

# Run both cameras for 60 seconds and check for errors
dmesg -w | grep -i "usb\|xhci\|bandwidth"

You should see: No xhci_hcd errors, no "cannot enable. Maybe the USB cable is bad?" messages, and both cameras streaming at their configured frame rate.

On Windows, reopen USBTreeView — each camera should appear under a different host controller with combined bandwidth usage well below 80% on each.

What You Learned

USB bandwidth is per host controller, not per port — a hub doesn't help
Most machines have 2–4 USB controllers; use lsusb -t or Device Manager to find them
MJPEG vs. YUY2 is a 10x bandwidth difference — always prefer MJPEG for multi-camera setups
A PCIe USB expansion card adds a genuinely new controller; a USB hub does not

Limitation: Thunderbolt/USB4 docks often route through a single controller internally — check with lsusb -t even if the dock has many ports.

When NOT to use this: If your cameras are dropping frames due to CPU encoding overhead rather than USB saturation, this won't help — profile CPU usage first with htop or Task Manager.

Tested on Ubuntu 24.04, Windows 11 23H2, with Logitech Brio 4K, Elgato Cam Link 4K, and Sony ZV-E10 via USB.
