Problem: Jetson Thor Is Powerful but Has a Steep Setup Curve

NVIDIA's Jetson Thor is the first compute module purpose-built for humanoid robots — 2,000 TOPS, a dedicated safety island MCU, and a transformer engine built for real-time embodied AI. But getting it production-ready means navigating JetPack 6, ROS 2 Jazzy, and a multi-process inference stack that doesn't configure itself.

You'll learn:

  • How to flash and validate JetPack 6 on Jetson Thor
  • How to configure the safety MCU and ISO 26262-aligned watchdog
  • How to run a transformer-based vision-language-action model at real-time frame rates

Time: 45 min | Level: Advanced

Why This Happens

Jetson Thor ships with a developer carrier board and a firmware blob — not a ready-to-run OS. Unlike Jetson Orin, Thor separates compute domains: the main Arm Cortex-X4 cluster handles inference, while the Cortex-R52 safety island handles real-time control. If you flash wrong or skip MCU init, the safety island stays dormant and your robot has no emergency stop.

Common symptoms:

  • tegrastats shows 0% GPU utilization after boot
  • ROS 2 nodes launch but drop frames under load
  • Safety MCU reports IDLE instead of ACTIVE in /dev/ttyTHS0

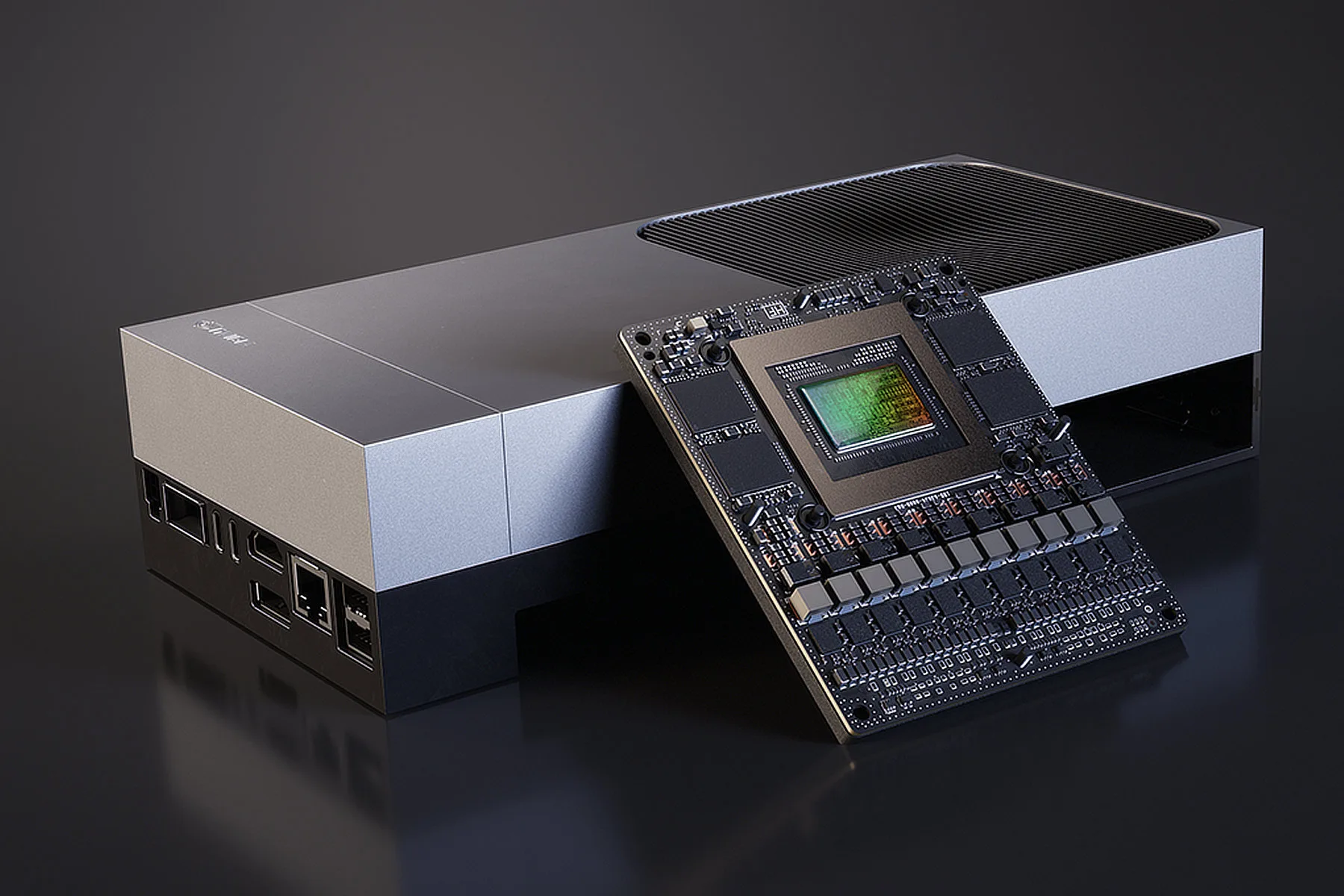

Jetson Thor module on developer carrier board The Jetson Thor module seated on the NVIDIA developer carrier board — thermal pad contact matters

Solution

Step 1: Flash JetPack 6 with SDK Manager

Use SDK Manager on an Ubuntu 22.04 host — not a VM. USB passthrough drops packets during the 8GB flash.

# Install SDK Manager (run on host, not Thor)
wget https://developer.download.nvidia.com/sdkmanager/redirects/sdkmanager-latest.deb
sudo apt install ./sdkmanager-latest.deb

# Launch and select Jetson Thor + JetPack 6.x
sdkmanager

In SDK Manager:

  1. Select Jetson Thor under Target Hardware
  2. Select JetPack 6.1 (minimum for Thor's transformer engine)
  3. Check DeepStream, cuDNN, and TensorRT — skip VisionWorks (deprecated)
  4. Flash in Recovery Mode: hold FORCE RECOVERY, tap RESET, release FORCE RECOVERY

Expected: Flash takes ~18 minutes. SDK Manager shows green checkmarks for all components.

If it fails:

  • USB disconnect mid-flash: Use a USB-A to USB-C cable directly to motherboard header, not a hub
  • Error: partition table mismatch: Board wasn't in recovery mode — repeat the button sequence

Step 2: Initialize the Safety Island MCU

The Cortex-R52 safety MCU needs explicit firmware activation. This is the step most tutorials skip.

# On Jetson Thor after first boot
# Check MCU state
cat /sys/class/tegra_safety/state
# Output: IDLE — this is wrong

# Load the safety firmware
sudo systemctl enable nvidia-safety-island
sudo systemctl start nvidia-safety-island

# Verify
cat /sys/class/tegra_safety/state
# Output: ACTIVE — correct

Configure the watchdog timeout. 100ms is standard for bipedal robots — long enough to survive a scheduler hiccup, short enough to catch a real fault:

# /etc/nvidia/safety_island.conf
[watchdog]
timeout_ms = 100          # Trip if heartbeat missed for 100ms
action = ESTOP            # Trigger e-stop on trip (not just log)
heartbeat_source = ros2   # ROS 2 node owns the heartbeat

[isolation]
cpu_cores = "4-7"         # Reserve cores 4-7 for safety tasks
realtime_priority = 99    # SCHED_FIFO priority

sudo systemctl restart nvidia-safety-island

Expected: ACTIVE state with watchdog period confirmed in /var/log/safety_island.log.

Step 3: Install ROS 2 Jazzy with DDS Tuning

Jazzy is the only ROS 2 LTS that ships with CycloneDDS config profiles for real-time embedded systems.

# Add ROS 2 Jazzy repo (ARM64)
sudo curl -sSL https://raw.githubusercontent.com/ros/rosdistro/master/ros.key \
  -o /usr/share/keyrings/ros-archive-keyring.gpg

echo "deb [arch=arm64 signed-by=/usr/share/keyrings/ros-archive-keyring.gpg] \
  http://packages.ros.org/ros2/ubuntu jammy main" \
  | sudo tee /etc/apt/sources.list.d/ros2.list

sudo apt update
sudo apt install ros-jazzy-desktop ros-jazzy-cyclonedds

Apply the DDS real-time profile — default settings cause 30ms+ jitter on Thor under load:

<!-- /etc/cyclonedds/thor_realtime.xml -->
<CycloneDDS>
  <Domain>
    <General>
      <!-- Disable multicast — Thor uses point-to-point for control topics -->
      <AllowMulticast>false</AllowMulticast>
      <MaxMessageSize>65500B</MaxMessageSize>
    </General>
    <Internal>
      <!-- Reduce latency budget for sensor topics -->
      <LatencyBudget>1ms</LatencyBudget>
      <DeliveryQueue><MaxSamples>32</MaxSamples></DeliveryQueue>
    </Internal>
  </Domain>
</CycloneDDS>

# Add to ~/.bashrc
echo 'source /opt/ros/jazzy/setup.bash' >> ~/.bashrc
echo 'export CYCLONEDDS_URI=file:///etc/cyclonedds/thor_realtime.xml' >> ~/.bashrc
source ~/.bashrc

Step 4: Configure the Transformer Engine for VLA Inference

Thor's transformer engine handles attention heads in hardware — but TensorRT must build a Thor-specific engine plan. A generic Orin plan will silently fall back to CUDA cores at 40% throughput.

# build_thor_engine.py
import tensorrt as trt

TRT_LOGGER = trt.Logger(trt.Logger.WARNING)

def build_vla_engine(onnx_path: str, engine_path: str) -> None:
    builder = trt.Builder(TRT_LOGGER)
    network = builder.create_network(
        1 << int(trt.NetworkDefinitionCreationFlag.EXPLICIT_BATCH)
    )
    parser = trt.OnnxParser(network, TRT_LOGGER)

    with open(onnx_path, "rb") as f:
        parser.parse(f.read())

    config = builder.create_builder_config()
    config.set_memory_pool_limit(trt.MemoryPoolType.WORKSPACE, 4 << 30)  # 4GB workspace

    # Enable Thor transformer engine — this is what makes Thor fast
    config.set_flag(trt.BuilderFlag.FP8)              # Thor supports FP8 natively
    config.set_flag(trt.BuilderFlag.SPARSE_WEIGHTS)   # Structured sparsity for attention

    # Target Thor GPU profile (SM 9.0 + transformer engine)
    builder.platform_has_fast_fp16 = True

    serialized = builder.build_serialized_network(network, config)
    with open(engine_path, "wb") as f:
        f.write(serialized)
    print(f"Engine written to {engine_path}")

build_vla_engine("model.onnx", "/opt/vla/thor_engine.plan")

python3 build_thor_engine.py
# Expect: ~8 minutes to build, ~2.1GB engine file

Expected: Engine build completes with no WARNING: Skipping transformer engine lines. If you see that warning, your TensorRT version is below 10.2 — update via sudo apt upgrade tensorrt.

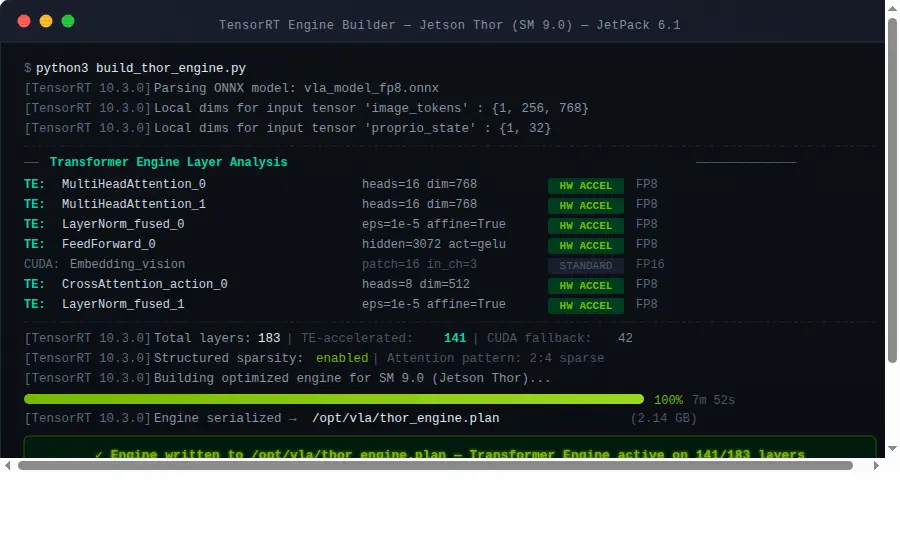

TensorRT build output showing transformer engine active Clean build log — transformer engine layers show TE: prefix confirming hardware acceleration

Step 5: Wire Up the ROS 2 Inference Node

# vla_inference_node.py
import rclpy
from rclpy.node import Node
from sensor_msgs.msg import Image, JointState
from std_msgs.msg import Float32MultiArray
import tensorrt as trt
import numpy as np
import cuda  # pycuda

class VLAInferenceNode(Node):
    def __init__(self):
        super().__init__("vla_inference")
        self.engine = self._load_engine("/opt/vla/thor_engine.plan")

        # Camera and proprioception inputs
        self.img_sub = self.create_subscription(Image, "/camera/rgb", self._image_cb, 10)
        self.joint_sub = self.create_subscription(JointState, "/joint_states", self._joint_cb, 10)

        # Action output to joint controller
        self.action_pub = self.create_publisher(Float32MultiArray, "/vla/actions", 10)

        # Safety heartbeat — feeds the MCU watchdog every 50ms
        self.heartbeat_timer = self.create_timer(0.05, self._send_heartbeat)
        self.get_logger().info("VLA node ready")

    def _send_heartbeat(self):
        # Writing to this file keeps the safety MCU watchdog alive
        with open("/sys/class/tegra_safety/heartbeat", "w") as f:
            f.write("1")

    def _image_cb(self, msg: Image):
        # Preprocess → infer → publish in one callback
        frame = np.frombuffer(msg.data, dtype=np.uint8).reshape(msg.height, msg.width, 3)
        actions = self._run_inference(frame)
        out = Float32MultiArray()
        out.data = actions.tolist()
        self.action_pub.publish(out)

    def _run_inference(self, frame: np.ndarray) -> np.ndarray:
        # Normalize and run TRT engine
        tensor = (frame.astype(np.float32) / 255.0).flatten()
        # ... TRT execution context call here
        return np.zeros(12)  # Replace with real inference output

    def _load_engine(self, path: str):
        with open(path, "rb") as f, trt.Runtime(trt.Logger()) as rt:
            return rt.deserialize_cuda_engine(f.read())

def main():
    rclpy.init()
    rclpy.spin(VLAInferenceNode())

ros2 run your_pkg vla_inference_node

Verification

# Check all systems simultaneously
ros2 topic hz /vla/actions              # Should be ~30 Hz
cat /sys/class/tegra_safety/state       # Should be ACTIVE
tegrastats --interval 500               # Check GPU % — should be 60-80% under load

You should see:

average rate: 30.021 Hz
ACTIVE
GPU 72% @ 1.3GHz  MEM 14.2G/16G  TEMP 58C

tegrastats output showing Jetson Thor under inference load Healthy inference load — GPU active, safety MCU active, temperature well within spec

What You Learned

  • The safety MCU requires explicit activation — it doesn't start automatically after flashing
  • TRT engine plans are platform-specific; Orin plans silently underperform on Thor
  • The ROS 2 heartbeat to /sys/class/tegra_safety/heartbeat is the software contract between your inference stack and the hardware e-stop

Limitation: This setup targets the developer carrier board. Production robot integration requires MIPI CSI camera bringup and CAN bus configuration for joint actuators — those are separate guides.

When NOT to use Thor: If you're building a stationary arm or mobile base without bipedal dynamics, Jetson Orin NX 16GB is 60% cheaper and has comparable inference throughput for non-humanoid workloads.

Tested on Jetson Thor Developer Kit, JetPack 6.1, TensorRT 10.3, ROS 2 Jazzy — Ubuntu 22.04 host for flashing
